Laser Consumables

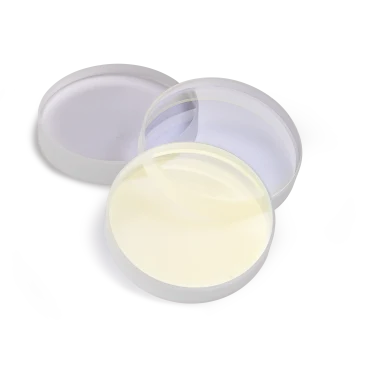

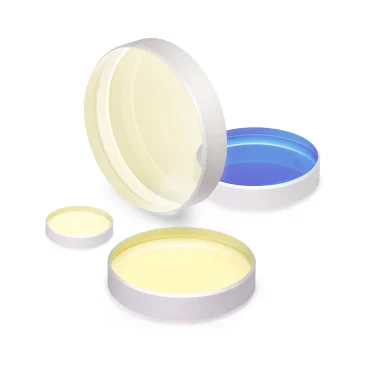

Fused Silica Protective Lens

ZPLASER Fused Silica Protective Lens for Raytools Precitec WSX Boci Cutting Head

Fused Silica Protective Lens is an optical lens, typically made from high-purity fused silica (also known as quartz), designed to protect other optical components and systems from damage, especially during laser applications like cutting, welding, and engraving. It acts as a barrier against debris, splatter, and the direct impact of the laser beam, preventing damage to more sensitive elements within the optical path.

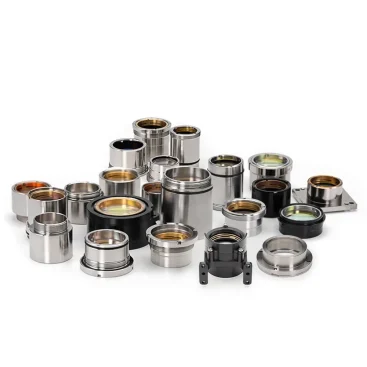

Collimating &Focusing Assembly

In laser cutting, the collimating and focusing assembly is a critical optical system that shapes and directs the laser beam to achieve precise cuts. The assembly consists of two main components: a collimating lens and a focusing lens. The collimating lens makes the laser beam parallel, while the focusing lens converges the beam to a tiny spot, enabling sharp and accurate cuts.

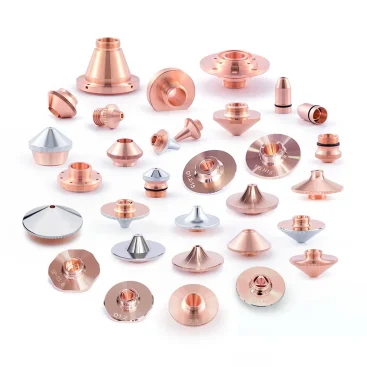

Cutting Nozzles

ZPLASER D28 D32 Fiber Laser Cutting Nozzle for Raytools Precitec WSX OSPRI DNE Cutting Head

Laser cutting nozzle is installed at the bottom of the laser head. It is a crucial component of a laser cutting system, responsible for directing the focused laser beam and assist gases to the workpiece. It ensures precise cutting by controlling airflow, removing debris, and protecting the internal optics of the laser head. The nozzle plays a key role in both the quality and efficiency of the cutting process.

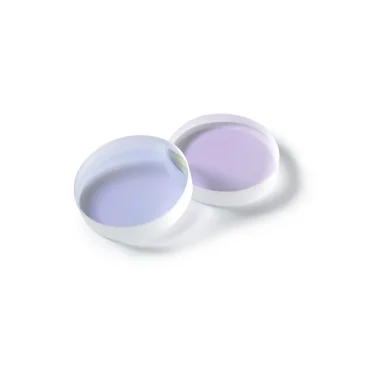

Meniscus + Biconvex Lens

ZPLASER Meniscus&Biconvex Lens Laser Focusing&Colliamting Lens for Raytools Precitec WSX Cutting Head

Meniscus + Biconvex Lens are typically made from high-purity fused silica (also known as quartz). A meniscus lens is characterized by having one convex and one concave surface, making it thicker at the center than at the edges. A biconvex lens is characterized by having both surfaces curved outward, making it thicker in the middle. They are the components of collimating lens and focusing lens for fiber laser cutting.

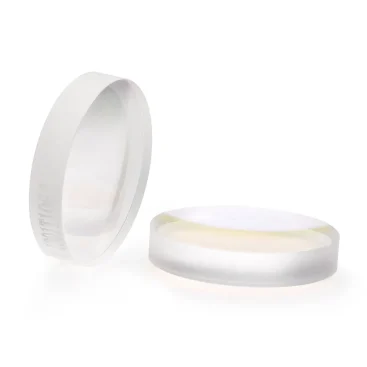

Plano Convex Lens

ZPLASER Plano Convex Lens Laser Focusing&Colliamting Lens for 3 in 1 Laser Cutting/Welding/Cleaning Machine

Plano Convex Lens is typically made from high-purity fused silica (also known as quartz). It is a type of optical lens characterized by one flat (plano) surface and one convex (outward-curved) surface. It is the component of collimating lens and focusing lens for fiber laser welding and cleaning.

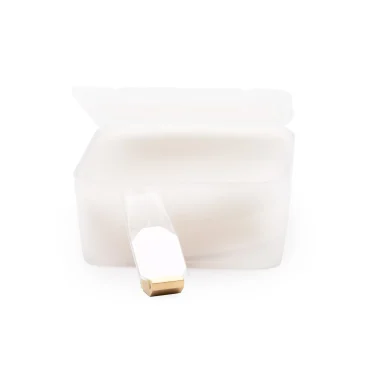

Reflective Lens

ZPLASER Reflective Lens for SUP QILIN Handheld Welding Gun

Reflective Lens is the important component of handheld welding head. It is used to accurately control the position and direction of the laser beam to ensure that the laser energy accurately acts on the workpiece surface to achieve high-quality welding.

Sapphire Protective Lens

ZPLASER Sapphire Protective Lens D34*T3 for Bystronic Fiber Laser Cutting Head

Sapphire Protective Lens is an optical lens, typically made from single crystal sapphire and features extremely high surface hardness, high thermal conductivity, high dielectric constant, and resistance to common chemical acids and bases, designed to protect other optical components and systems from damage, especially during laser applications like cutting, welding, and engraving. It acts as a barrier against debris, splatter, and the direct impact of the laser beam, preventing damage to more sensitive elements within the optical path.

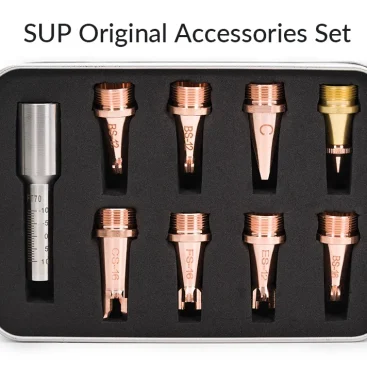

Welding Nozzles

ZPLASER Welding Nozzles for Handheld SUP Qilin WSX OSPRI Welding Gun

Laser welding nozzle is a copper appliance that directs the laser beam and assists with gases in the welding process, ensuring smooth, efficient welds and preventing debris from damaging the laser lens. They are designed for both filler and non-filler welding, with different types available for various welding applications like flat, corner, and wire feed welding.

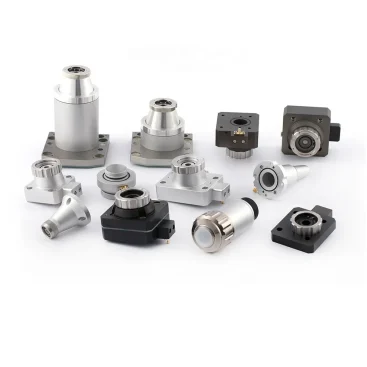

ZPLASER Nozzle Connector Sensor Head for Fiber Laser Cutting Machine

Laser sensor connectors in laser cutting heads function to transmit electrical signals and power between the sensors and the control system, enabling features like height sensing, focus tracking, and workpiece detection for precise and reliable cutting. These connectors also facilitate the transmission of cutting signals, ensuring the laser cutting head doesn’t contact the workpiece.

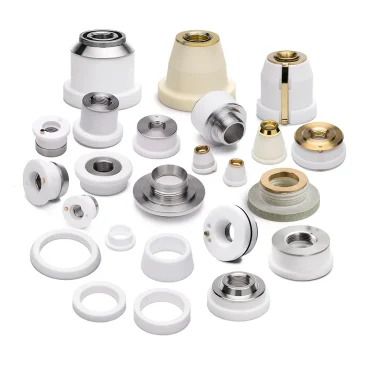

ZPLASER Ceramic Ring For Raytools/Precitec/WSX/BOCI/OSPRI Fiber Laser Cutting Head

Laser ceramic ring is a crucial component in laser cutting systems, particularly fiber laser cutters. It’s made of ceramic materials and serves to support and protect the focusing lens within the laser head, ensuring precise beam alignment and accurate cutting. The ring also helps to insulate the laser head and transmit signals to the nozzle.
