ZPLASER Ceramic Ring For Raytools/Precitec/WSX/BOCI/OSPRI Fiber Laser Cutting Head

ZPLASER Ceramic Ring For Raytools/Precitec/WSX/BOCI/OSPRI Fiber Laser Cutting Head

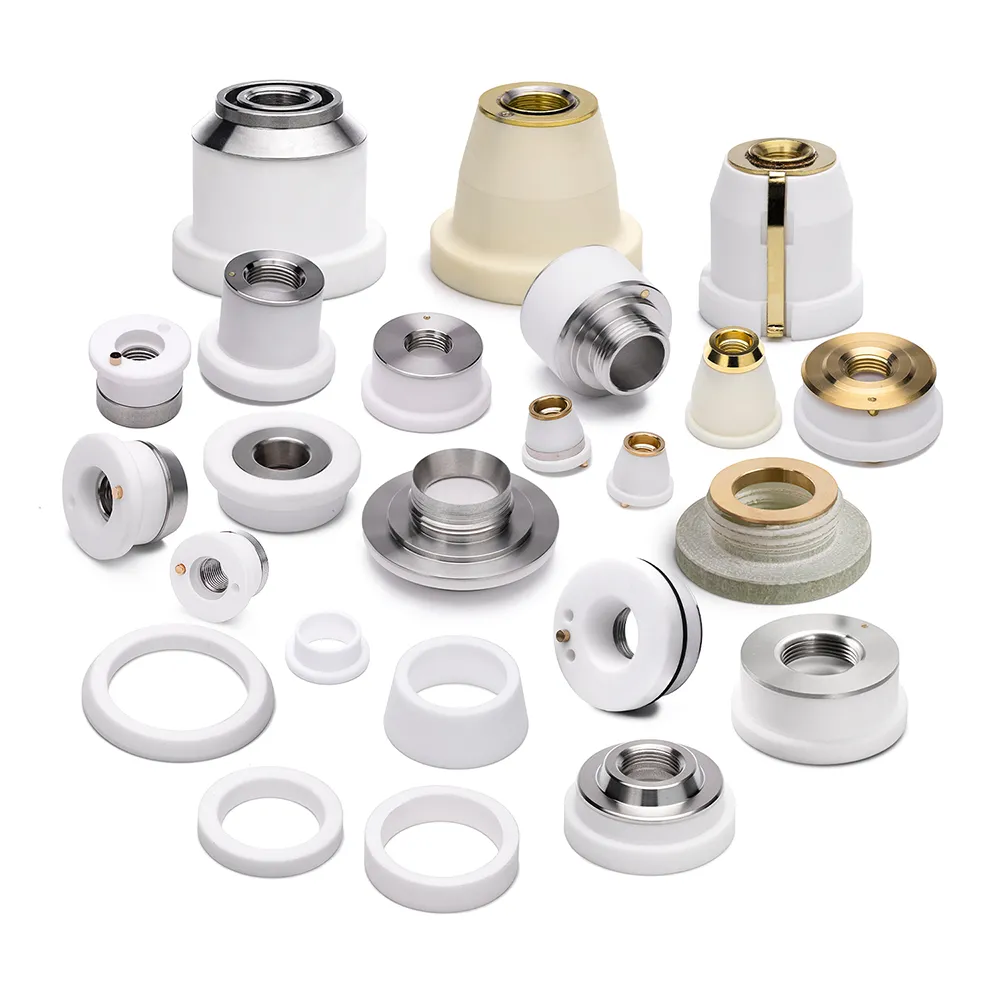

Laser ceramic ring is a crucial component in laser cutting systems, particularly fiber laser cutters. It’s made of ceramic materials and serves to support and protect the focusing lens within the laser head, ensuring precise beam alignment and accurate cutting. The ring also helps to insulate the laser head and transmit signals to the nozzle.

Description

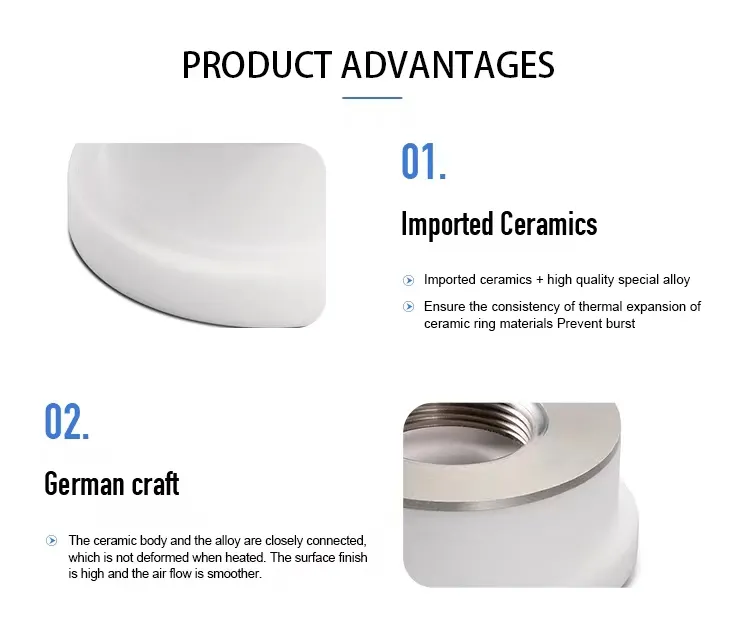

High-Quality Alloy Construction

Prevents Bursting, Ensures Durability, Crafted from premium alloys to withstand high temperatures and pressure, effectively preventing cracking or bursting during operation.

Consistent Material Matching

Seamless Fit Between Alloy and Ceramic Components, High consistency between alloy, ceramic body, and ceramic ring ensures structural integrity and better thermal compatibility.

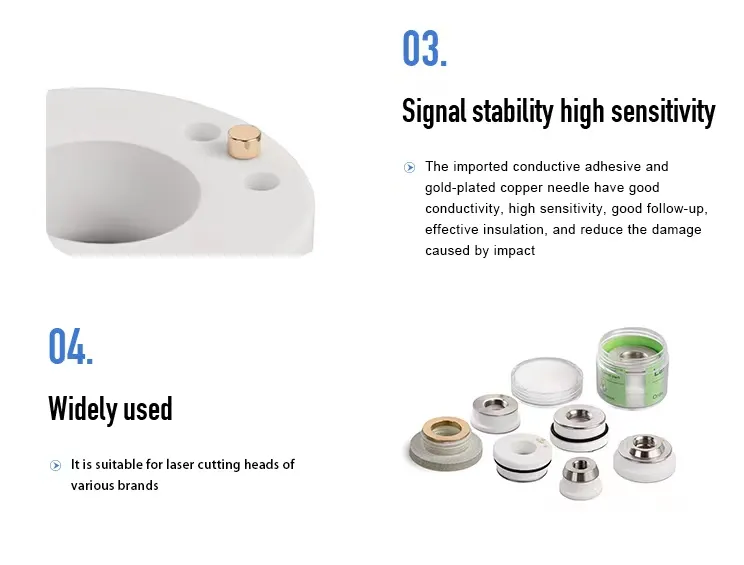

Stable Signals and High Sensitivity

Reliable Signal Transmission, Delivers stable signal response with high sensitivity, improving precision in cutting and reducing signal interference.

Efficient Conductivity and Insulation

Reduces Sensor Damage, Excellent conductivity and insulation performance help minimize tracking issues and protect sensors from mechanical and electrical impact.

Reliable Performance and Longevity

Consistent Stability Over Time, Built for long-term use, offering stable performance under demanding conditions with minimal maintenance required.

Refined Surface and Smooth Airflow

Improved Cutting Efficiency, High surface finish and optimized airflow design reduce turbulence and support clean, efficient laser cutting.

No. Used on brand Specification
1 Raytools Raytools D28 M11 H11.7(T3.6)
2 Raytools D28 M11 H11.7(T4.2)
3 Raytools D32 M11 H12
4 Raytools D32 M14 H11.7
5 Raytools D41 M11 H12.9
6 Raytools D41 M21 H48.5
7 Raytools 3D D19.5 M8 H12.4
8 Raytools 3D D21.4 M8 孔距5
9 Raytools 3D D21.4 M11
10 Raytools BS12K(铜)
11 Raytools BS12K(不锈钢)
12 Raytools BS15K 3D D21.4
13 WSX WSX D13 M5 H10.5
14 WSX D18 M20
15 WSX D19.5 M8 H12.4
16 WSX mini D24 M8 H11.7
17 WSX D28 M11 H11.7
18 WSX D28 M20 H25
19 WSX D31 M11 H13.5 NC63
20 WSX D32 M14 H11.7
21 WSX D41 M11 H34.5
22 WSX 3D D17.8 M8 H11
23 WSX D15.6 H10
24 Precitec Precitec 1.0 D28 M11 H12
25 Precitec 2.0 D31 M11 H13.5
26 Precitec D13 M5 H10.4
27 Precitec KTX D31 M15 H10.6
28 Precitec KTX-XB D31 M11 H13.5
29 Precitec 3D D13 M5 H10.5
30 Precitec 3D D17 M6 H15.5
31 BOCI BOCI M11*0.75 D41 H34
32 BOCI M11*0.75-S D41 H34
33 BOCI M11*0.75-P D30 H21
34 BOCI D20 M8 H28
35 BOCI D20 M8 H34
36 OSPRI OSPRI D17.8 M8 H12.5 FC11
37 OSPRI D19.4 M8 H12.5 FC07
38 OSPRI D20.5 M8 H13.5
39 OSPRI D21.4 M8 H13 FC40
40 OSPRI D21.5 M8 H14 FC218
41 OSPRI D25 M10 H19 FC04
42 OSPRI D28 M11 H11.7
43 OSPRI D41 M11 H22 FC14
44 OSPRI D41 M11 H26 FC17
45 OSPRI 3D D17.8 M8 H11
46 BODOR BODOR D20.6 M8 H13.5
47 BODOR D21.5 M8 H14
48 BODOR D28 M11 H12
49 BODOR D31 M11 H13.5
50 BODOR D32 M14 H12
51 Bystronic Bystronic 10032838 D26 H11.5
52 Bystronic 401959 D26 H10.9
53 Bystronic 409010 D28 H6.5
54 Bystronic 401642/400569
55 Bystronic D25.9 H4
56 Bystronic D35.2 H4
57 Bystronic D38 H7
58 HIGHYAG HIGHYAG (new) D24.5 M11 H22.6
59 HIGHYAG (old) D35 M11 H16.1
60 HIGHYAG D35.2 H4
61 TRUMPF TRUMPF D25 M8 H11.2
62 TRUMPF D41 M12 H33.8
63 TRUMPF 1906032 D41 M12 H34黄色
64 TRUMPF 1906032 D41 M12 H34白色
65 TRUMPF 1755673/1349171 D41 M12
66 TRUMPF 260432/254493 D32 M8 H32.4
67 TRUMPF 258809
68 TRUMPF 936678 D17.5 M6 H17.7
69 TRUMPF 913966 D17.5 M6 H17.7
70 DNE DNE 0502 D43 H16
71 DNE 2500 D43 H7
72 DNE 2700 D53 H8.5
73 DNE 2704 D53 H16
74 DNE 3100 D43 H10
75 DNE 3500/3501 D43 H8.5
76 HANS HANS D17.6 M6 H17.7
77 HANS D31 M11 H13.5
78 HANS D40.8 M11 H34
79 IPG IPG D28.5 M11 H10.3
80 MAX MAX D31 M11 H28.5
81 MAX D41 M11 H34.5
82 岗春 岗春D17.5 M8 H20
83 岗春D17.5 M9 H8.4
84 岗春D21.4 M11 H26
85 岗春D28 M11 H30
86 岗春D28 M11 H12
87 创科源 创科源D18 M8 H10.6
88 通历 通历D28 M12 H12
89 通历D32 M12 H12
90 钋镭 钋镭D41 M11 H27.6
