Plano Convex Lens

Plano Convex Lens

ZPLASER Plano Convex Lens Laser Focusing&Colliamting Lens for 3 in 1 Laser Cutting/Welding/Cleaning Machine

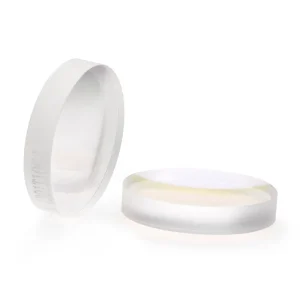

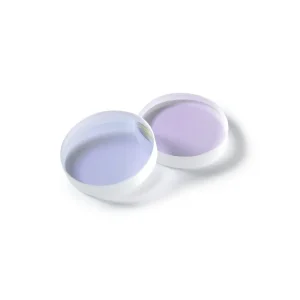

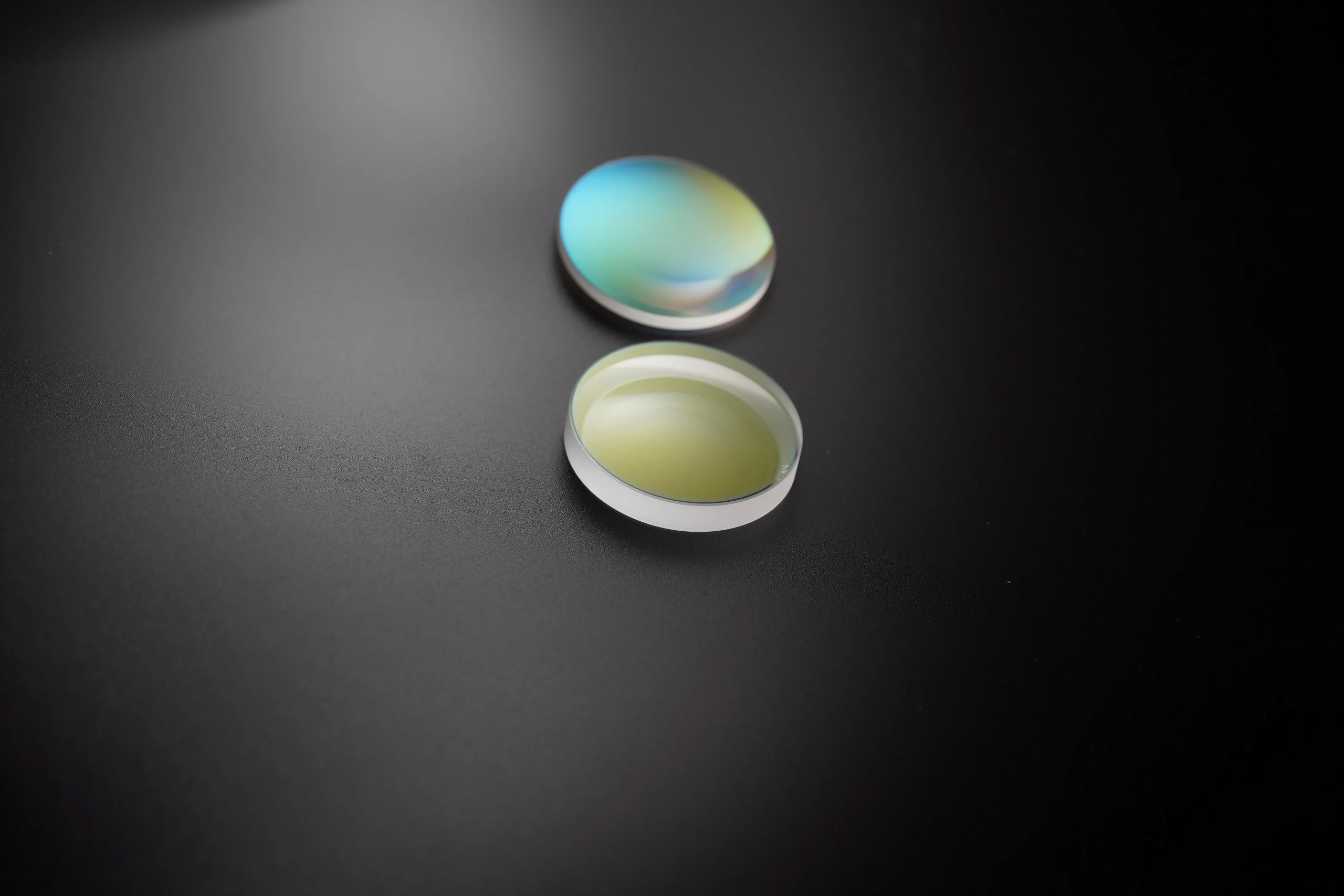

Plano Convex Lens is typically made from high-purity fused silica (also known as quartz). It is a type of optical lens characterized by one flat (plano) surface and one convex (outward-curved) surface. It is the component of collimating lens and focusing lens for fiber laser welding and cleaning.

Description

High Precision and Quality

Accurate Welds with Clean Finishes, Ensures stable welding seams with minimal spatter and excellent surface quality, ideal for high-precision applications.

Fast Welding Speeds

Boost Productivity Without Sacrificing Quality, High-speed laser welding dramatically shortens production time while maintaining consistent and reliable results.

Versatile Material Compatibility

Supports a Wide Range of Metals, Capable of welding stainless steel, aluminum, copper, and more—suitable for diverse industries and applications.

Deep and Narrow Welds

Strong Joints in Minimal Space, Laser penetration allows for deep, narrow welds with high strength and reduced material usage.

Low Heat Input and Minimal Distortion

Protects Material Integrity, Localized heating reduces thermal deformation, preserving the mechanical properties of the base material.

Non-Contact Operation

No Pressure, No Tool Wear, Welding without physical contact minimizes wear and ensures consistent quality across repeated operations.

Flexible Weld Patterns

Adapt to Complex Designs, Supports linear, circular, and custom welding paths to meet the needs of intricate and varied product designs.

Series Product   Series Product
ZP Plano Convex Lens D16 Series D16 F50 CT5   ZP Plano Convex Lens D28 Series D28 F100
D16 F60 CT5   D28 F125 CT4.91
ZP Plano Convex Lens D20 Series D20 F50 CT5   D28 F150 CT4.5
D20 F50 CT4.5   D28 F200 CT4.5
D20 F50 CT3.5   D28 F250
D20 F100 CT4.5   D28 F300 CT4.0
D20 F125 CT3.5   D28 F600 CT3.5
D20 F125 CT4.5   ZP Plano Convex Lens D30 Series D30 F100 CT4.5
D20 F150 CT3.0   D30 F125 CT4.0
D20 F150 CT4.5   D30 F125 CT6.0
D20 F200 CT3.8   D30 F150 CT5.7
D20 F200 CT4.5   D30 F150 CT4.0
D20 F300 CT4.5   D30 F150 CT4.5
D20 F400 CT3.5   D30 F200 CT3.7
D20 F400 CT4.0   D30 F200 CT4.5
D20 F500 CT3.3   D30 F250 CT3.5
D20 F600 CT3.9   D30 F250 CT4.5
D20 F600 CT4.5   D30 F300 CT3.5
D20 F800 CT3.2   D30 F300 CT4.5
D20 F800 CT4.5   D30 F400 CT4.5
ZP Plano Convex Lens D25 Series D24 F120 CT7.1   D30 F500 CT3.5
D25 F60 CT5.0   D30 F600 CT3.6
D25 F125 CT4.5   D30 F800 CT3.5
D25 F150 CT4.5   ZP Plano Convex Lens D38 Series D38 F150
D25 F200   D38 F200
D25.4 F40   D38 F300
D25.4 F60   D38.1 F100 STEP
D25.4 F100 CT5.45   D38.1 F120 STEP
D25.4 F125   D38.1 F150 STEP
D25.4 F150 CT3.8   D38.1 F125 CT9.23
D25.4 F200   D38.1 F200 CT8.62
D25.4 F250   ZP Plano Convex Lens D50 Series D50 F120
      D50 F150 CT7.8
      D50 F150 CT9.29
      D50 F250
      D50 F300 CT7.8

Why Choose US

About Zhongpan Laser

Zhongpan Laser has complete processing and testing equipment that can cover processes such as raw material cutting, mold&fixture CNC, cold processing, coating, testing, etc, ensuring that the entire product process is completed under strict control and providing customers with first-class quality service. The company selects imported raw materials and focuses on the research and development and production of optical lenses, especially high-power laser protective lenses and laser collimating and focusing lenses It selects imported production and inspection equipment to meet the diverse needs of customers.
