Meniscus + Biconvex Lens

Meniscus + Biconvex Lens

ZPLASER Meniscus&Biconvex Lens Laser Focusing&Colliamting Lens for Raytools Precitec WSX Cutting Head

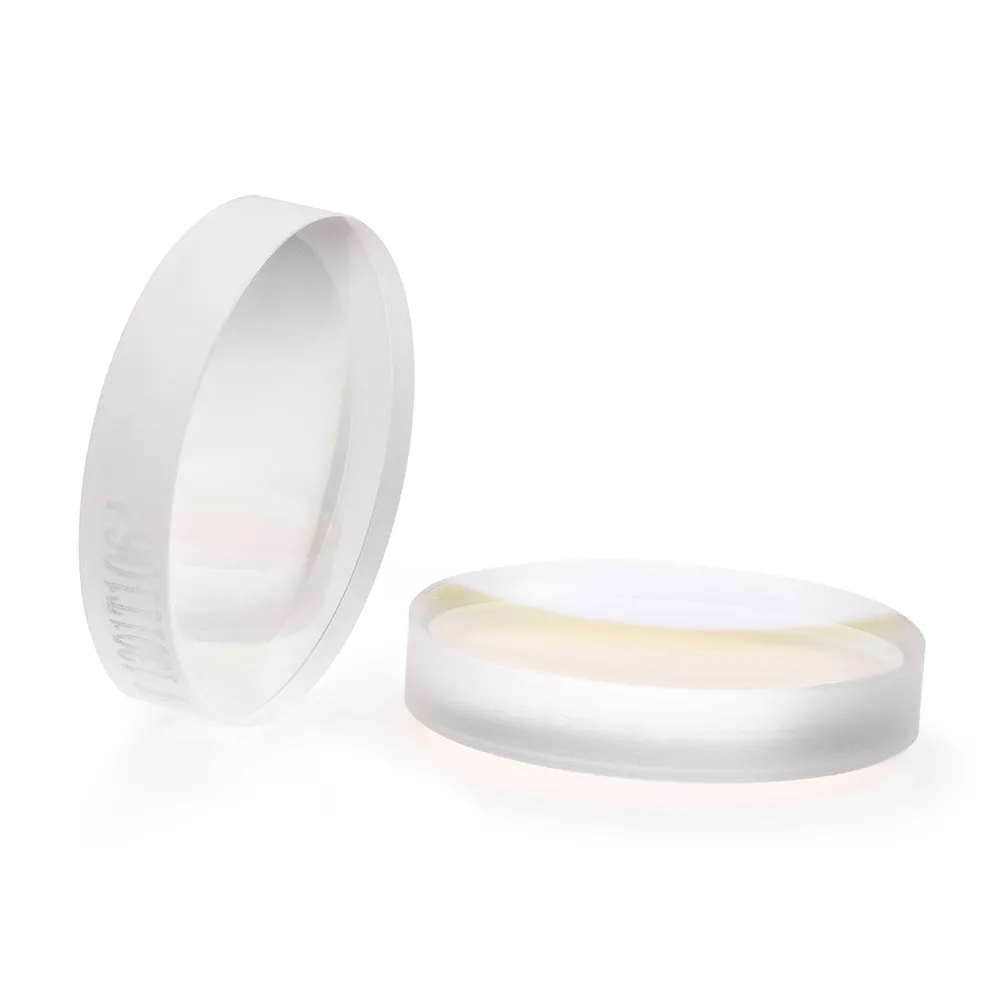

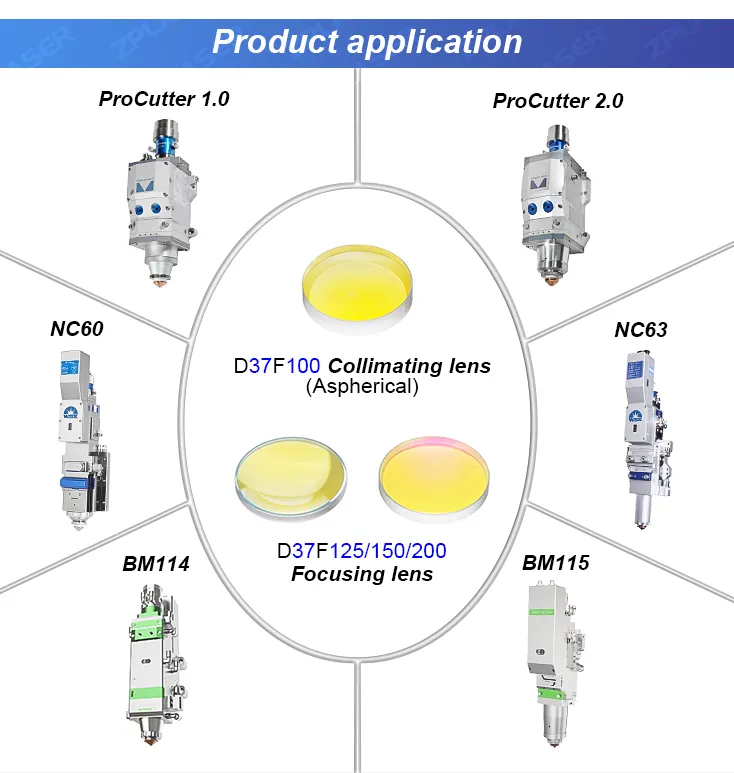

Meniscus + Biconvex Lens are typically made from high-purity fused silica (also known as quartz). A meniscus lens is characterized by having one convex and one concave surface, making it thicker at the center than at the edges. A biconvex lens is characterized by having both surfaces curved outward, making it thicker in the middle. They are the components of collimating lens and focusing lens for fiber laser cutting.

Description

High Precision and Quality

Accurate Welds with Clean Finishes, Ensures stable welding seams with minimal spatter and excellent surface quality, ideal for high-precision applications.

Fast Welding Speeds

Boost Productivity Without Sacrificing Quality, High-speed laser welding dramatically shortens production time while maintaining consistent and reliable results.

Versatile Material Compatibility

Supports a Wide Range of Metals, Capable of welding stainless steel, aluminum, copper, and more—suitable for diverse industries and applications.

Deep and Narrow Welds

Strong Joints in Minimal Space, Laser penetration allows for deep, narrow welds with high strength and reduced material usage.

Low Heat Input and Minimal Distortion

Protects Material Integrity, Localized heating reduces thermal deformation, preserving the mechanical properties of the base material.

Non-Contact Operation

No Pressure, No Tool Wear, Welding without physical contact minimizes wear and ensures consistent quality across repeated operations.

Flexible Weld Patterns

Adapt to Complex Designs, Supports linear, circular, and custom welding paths to meet the needs of intricate and varied product designs.

Series Product
ZP Composite Lens(Meniscus+Biconvex) D24.7 F75
D24.7 F100
D24.7 F125
D24.7 F150
D28 F75
D28 F100
D28 F125
D28 F150
D30 F75
D30 F100
D30 F125
D30 F128
D30 F150
D30 F155
D30 F200
D37 F100
D37 F125
D37 F150
D37 F190
D37 F200
D38.1 F100
D38.1 F150
D38.1 F200
D50 F100

Why Choose US

About Zhongpan Laser

Zhongpan Laser has complete processing and testing equipment that can cover processes such as raw material cutting, mold&fixture CNC, cold processing, coating, testing, etc, ensuring that the entire product process is completed under strict control and providing customers with first-class quality service. The company selects imported raw materials and focuses on the research and development and production of optical lenses, especially high-power laser protective lenses and laser collimating and focusing lenses It selects imported production and inspection equipment to meet the diverse needs of customers.
