Fused Silica Protective Lens

Fused Silica Protective Lens

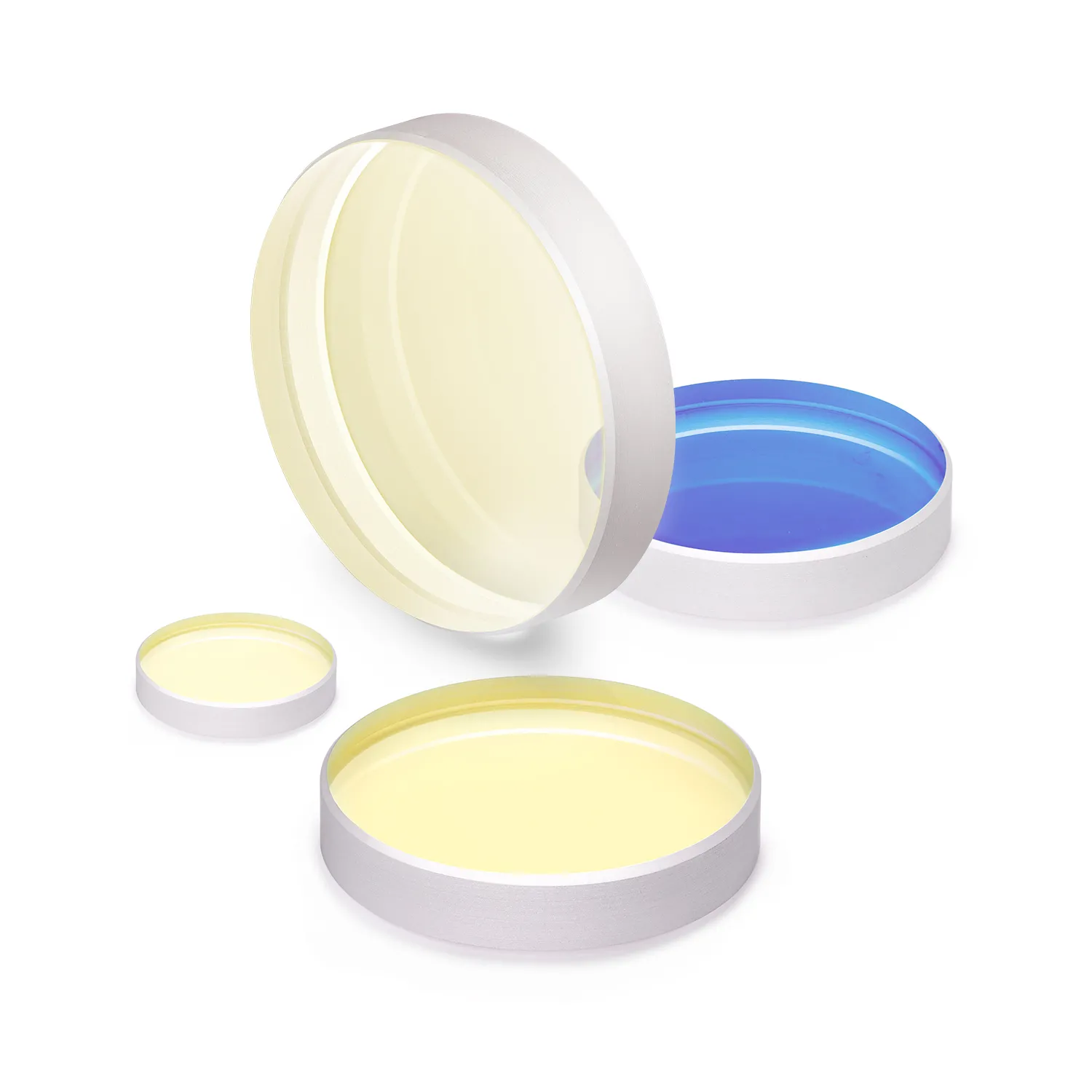

ZPLASER Fused Silica Protective Lens for Raytools Precitec WSX Boci Cutting Head

Fused Silica Protective Lens is an optical lens, typically made from high-purity fused silica (also known as quartz), designed to protect other optical components and systems from damage, especially during laser applications like cutting, welding, and engraving. It acts as a barrier against debris, splatter, and the direct impact of the laser beam, preventing damage to more sensitive elements within the optical path.

Description

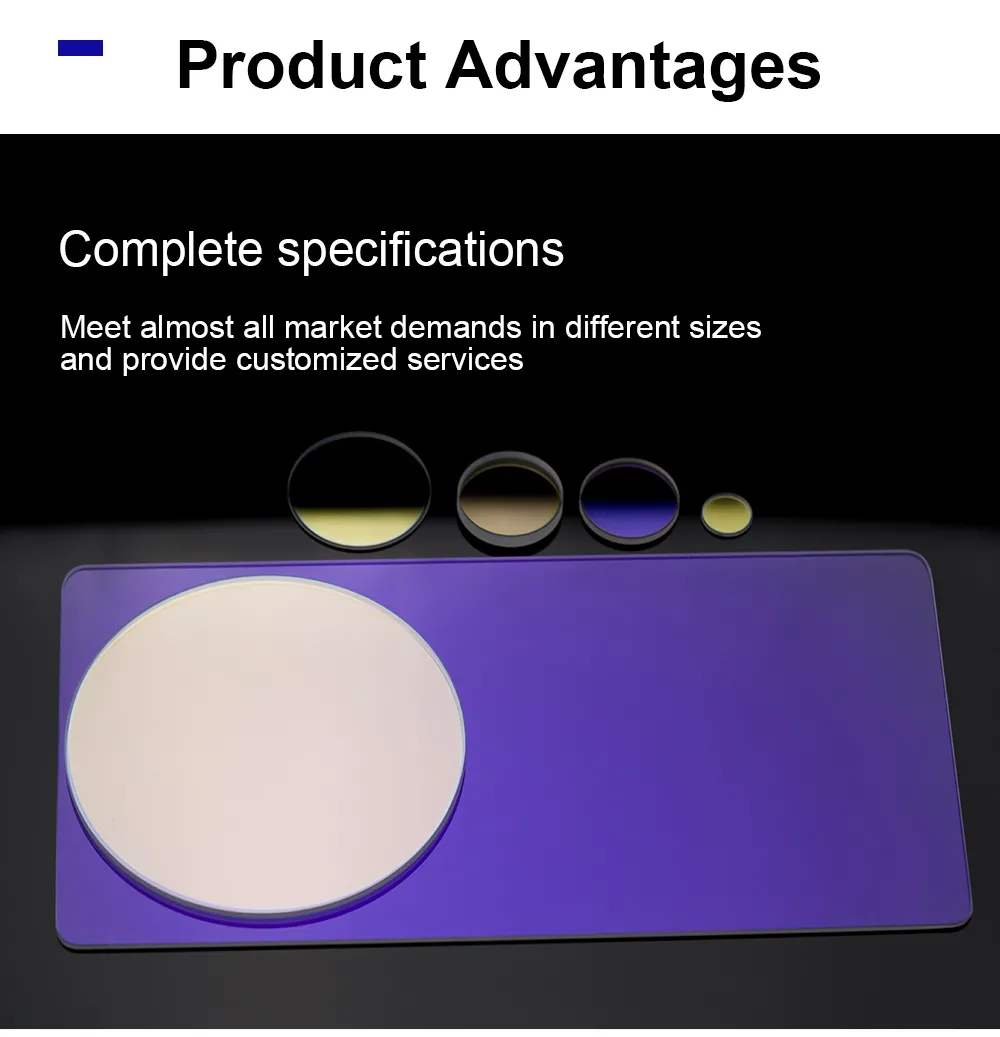

Complete specifications

Meet almost al market demands in different sizes and provide customized services.

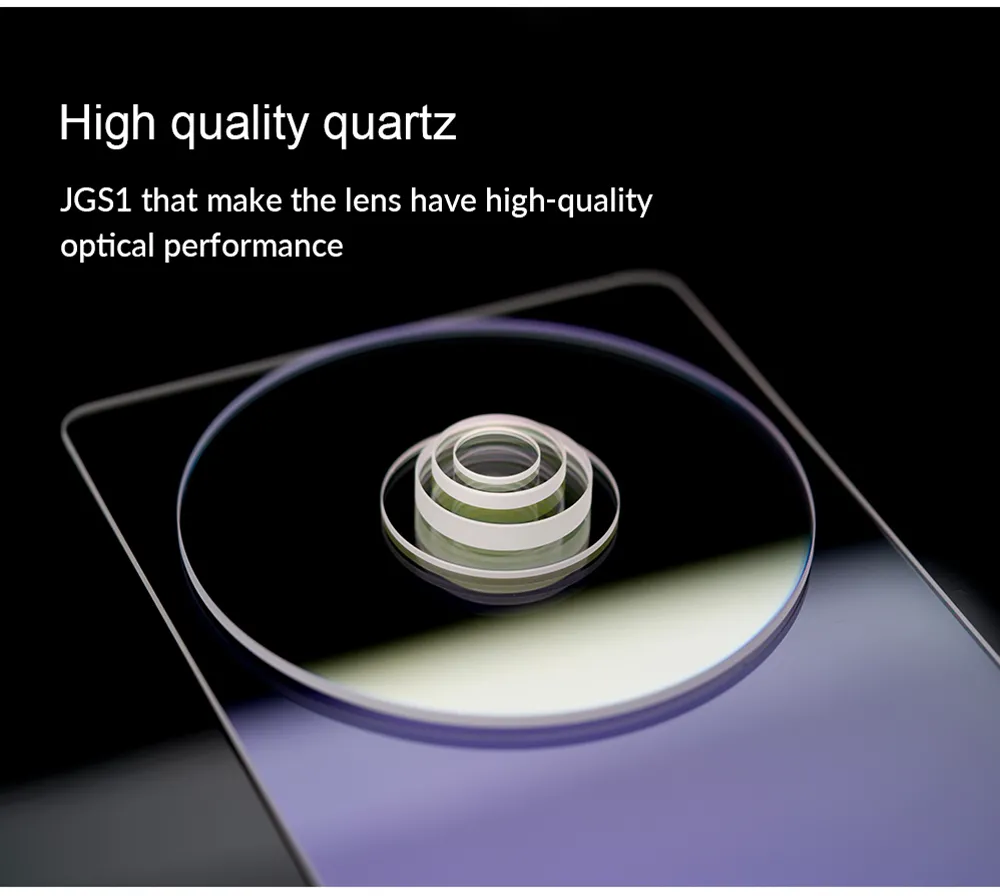

High quality quartz

JGS1 that make the lens have high-quality optical performance.

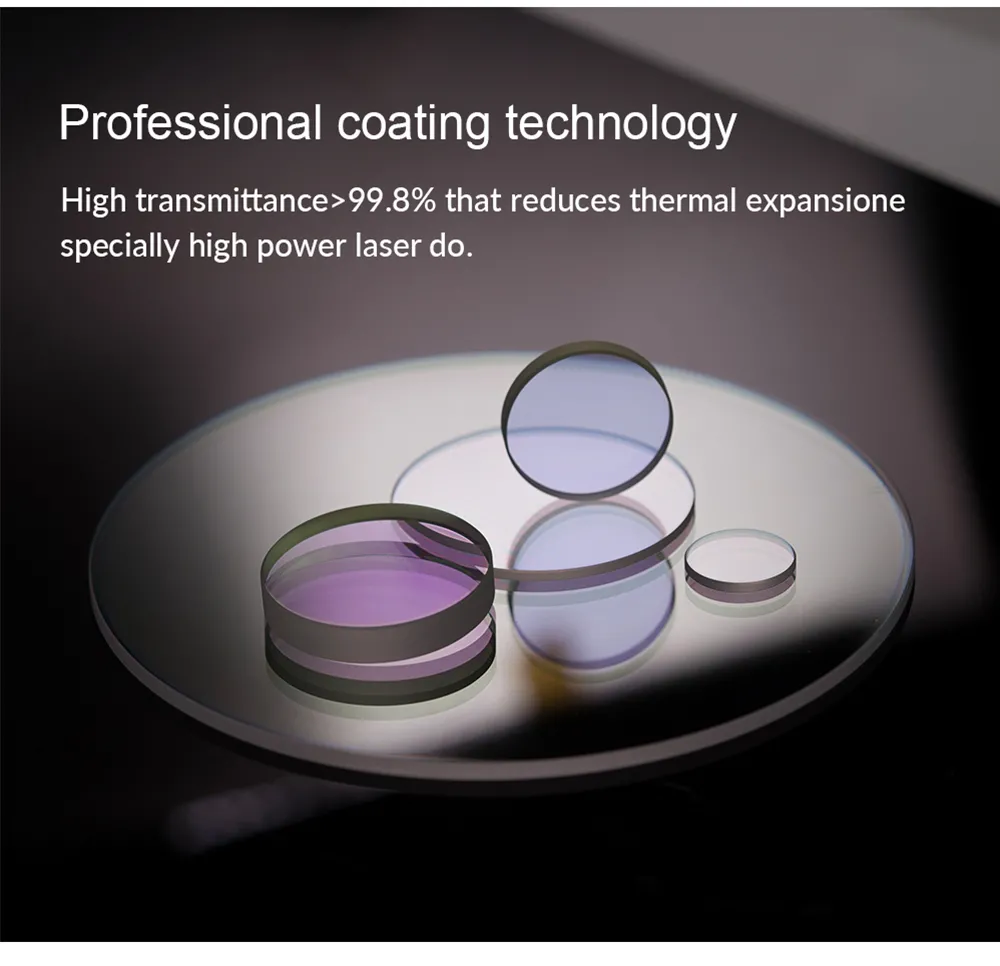

Professional coating technology

High transmittance>99.8% that reduces thermal expansion especially high power laser do.

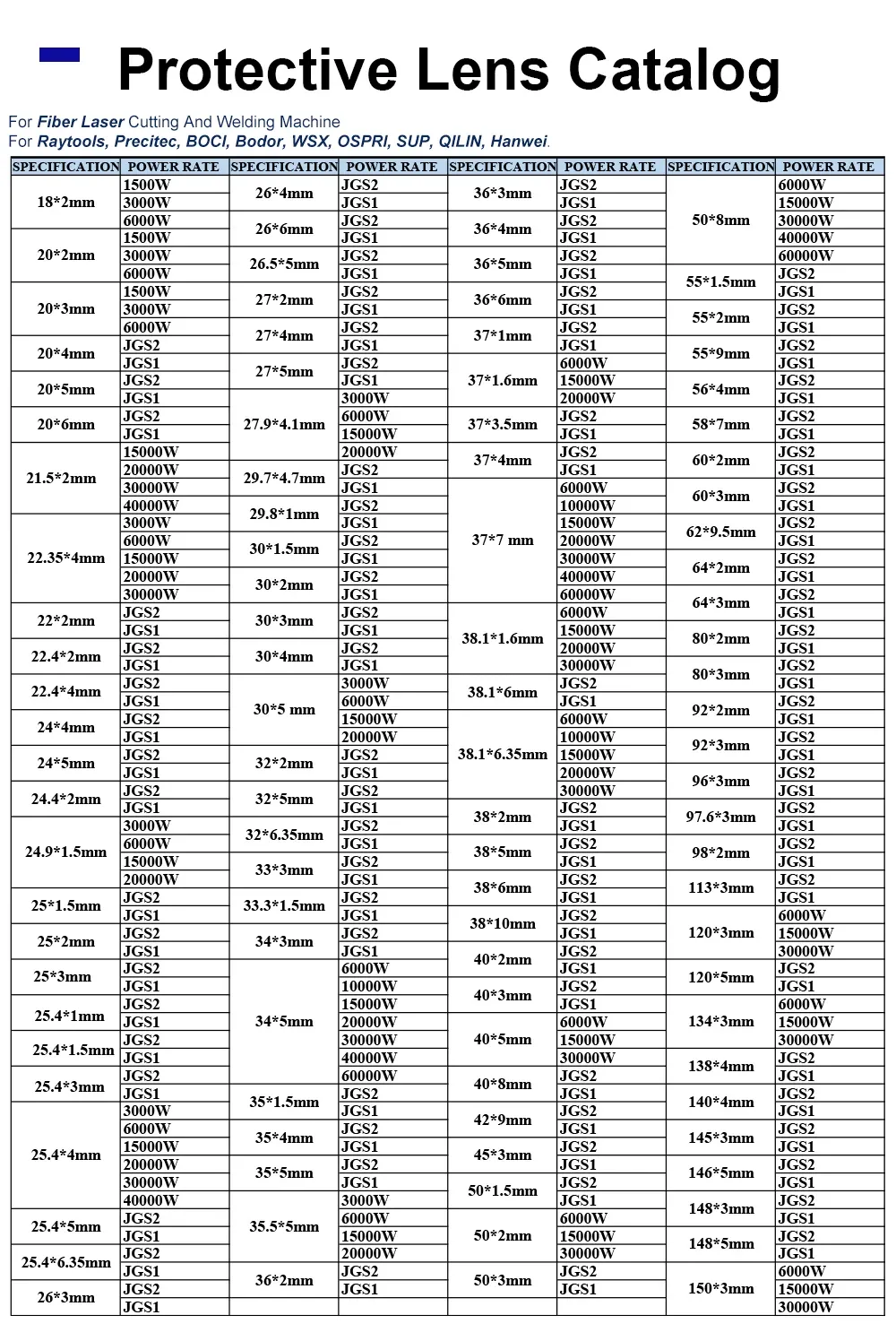

SPECIFICATION POWER RATE    SPECIFICATION POWER RATE    SPECIFICATION POWER RATE    SPECIFICATION POWER RATE
18*2mm 1500W   25.4*5mm JGS2   35*5mm JGS2   42*9mm JGS2
3000W   JGS1   JGS1   JGS1
6000W   25.4*6.35mm JGS2   35.5*5mm 3000W   45*3mm JGS2
20*2mm 1500W   JGS1   6000W   JGS1
3000W   26*3mm JGS2   15000W   50*1.5mm JGS2
6000W   JGS1   20000W   JGS1
20*3mm 1500W   26*4mm JGS2   36*2mm JGS2   50*2mm 6000W
3000W   JGS1   JGS1   15000W
6000W   26*6mm JGS2   36*3mm JGS2   30000W
20*4mm JGS2   JGS1   JGS1   50*3mm JGS2
JGS1   26.5*5mm JGS2   36*4mm JGS2   JGS1
20*5mm JGS2   JGS1   JGS1   50*8mm 6000W
JGS1   27*2mm JGS2   36*5mm JGS2   15000W
20*6mm JGS2   JGS1   JGS1   30000W
JGS1   27*4mm JGS2   36*6mm JGS2   40000W
21*5mm 15000W   JGS1   JGS1   60000W
20000W   27*5mm JGS2   37*1mm JGS2   55*1.5mm JGS2
30000W   JGS1   JGS1   JGS1
40000W   27.9*4.1mm  3000W   37*1.6mm 6000W   55*2mm JGS2
22.35*4mm 3000W   6000W   15000W   JGS1
6000W   15000W   20000W   55*9mm JGS2
15000W   20000W   37*3.5mm JGS2   JGS1
20000W   29.7*4.7mm JGS2   JGS1   56*4mm JGS2
30000W   JGS1   37*4mm JGS2   JGS1
22*2mm JGS2   29.8*1mm JGS2   JGS1   58*7mm JGS2
JGS1   JGS1   37*7 mm 6000W   JGS1
22.4*2mm JGS2   30*1.5mm JGS2   10000W   60*2mm JGS2
JGS1   JGS1   15000W   JGS1
22.4*4mm JGS2   30*2mm JGS2   20000W   60*3mm JGS2
JGS1   JGS1   30000W   JGS1
24*4mm JGS2   30*3mm JGS2   40000W   62*9.5mm JGS2
JGS1   JGS1   60000W   JGS1
24*5mm JGS2   30*4mm JGS2   38.1*1.6mm 6000W   64*2mm JGS2
JGS1   JGS1   15000W   JGS1
24.4*2mm JGS2   30*5 mm 3000W   20000W   64*3mm JGS2
JGS1   6000W   30000W   JGS1
24.9*1.5mm 3000W   15000W   38.1*6mm JGS2   80*2mm JGS2
6000W   20000W   JGS1   JGS1
15000W   32*2mm JGS2   38.1*6.35mm 6000W   80*3mm JGS2
20000W   JGS1   10000W   JGS1
25*1.5mm JGS2   32*5mm JGS2   15000W   92*2mm JGS2
JGS1   JGS1   20000W   JGS1
25*2mm JGS2   32*6.35mm JGS2   30000W   92*3mm JGS2
JGS1   JGS1   38*2mm JGS2   JGS1
25*3 JGS2   33*3mm JGS2   JGS1   96*3mm JGS2
JGS1   JGS1   38*5mm JGS2   JGS1
25.4*1 JGS2   33.3*1.5mm JGS2   JGS1   97.6*3mm JGS2
JGS1   JGS1   38*6mm JGS2   JGS1
25.4*1.5 JGS2   34*3mm JGS2   JGS1   98*2mm JGS2
JGS1   JGS1   38*10mm JGS2   JGS1
  JGS2   34*5mm 6000W   JGS1   113*3mm JGS2
25.4*3 JGS1   10000W   40*2mm JGS2   JGS1
25.4*4mm 3000W   15000W   JGS1   120*3mm 6000W
6000W   20000W   40*3mm JGS2   15000W
15000W   30000W   JGS1   30000W
20000W   40000W   40*5mm 6000W   120*5mm JGS2
30000W   60000W   15000W   JGS1
40000W   35*1.5mm JGS2   30000W   134*3mm 6000W
      JGS1   40*8mm JGS2   15000W
      35*4mm JGS2   JGS1   30000W
      JGS1         138*4mm JGS2
                  JGS1
                  140*4mm JGS2
                  JGS1
                  145*3mm JGS2
                  JGS1
                  146*5mm JGS2
                  JGS1
                  148*3mm JGS2
                  JGS1
                  148*5mm JGS2
                  JGS1
                  150*3mm 6000W
                  15000W
                  30000W

Why Choose US

About Zhongpan Laser

Zhongpan Laser has complete processing and testing equipment that can cover processes such as raw material cutting, mold&fixture CNC, cold processing, coating, testing, etc, ensuring that the entire product process is completed under strict control and providing customers with first-class quality service. The company selects imported raw materials and focuses on the research and development and production of optical lenses, especially high-power laser protective lenses and laser collimating and focusing lenses It selects imported production and inspection equipment to meet the diverse needs of customers.
