Collimating &Focusing Assembly

Collimating &Focusing Assembly

Collimating &Focusing Assembly

Categories , , Tag

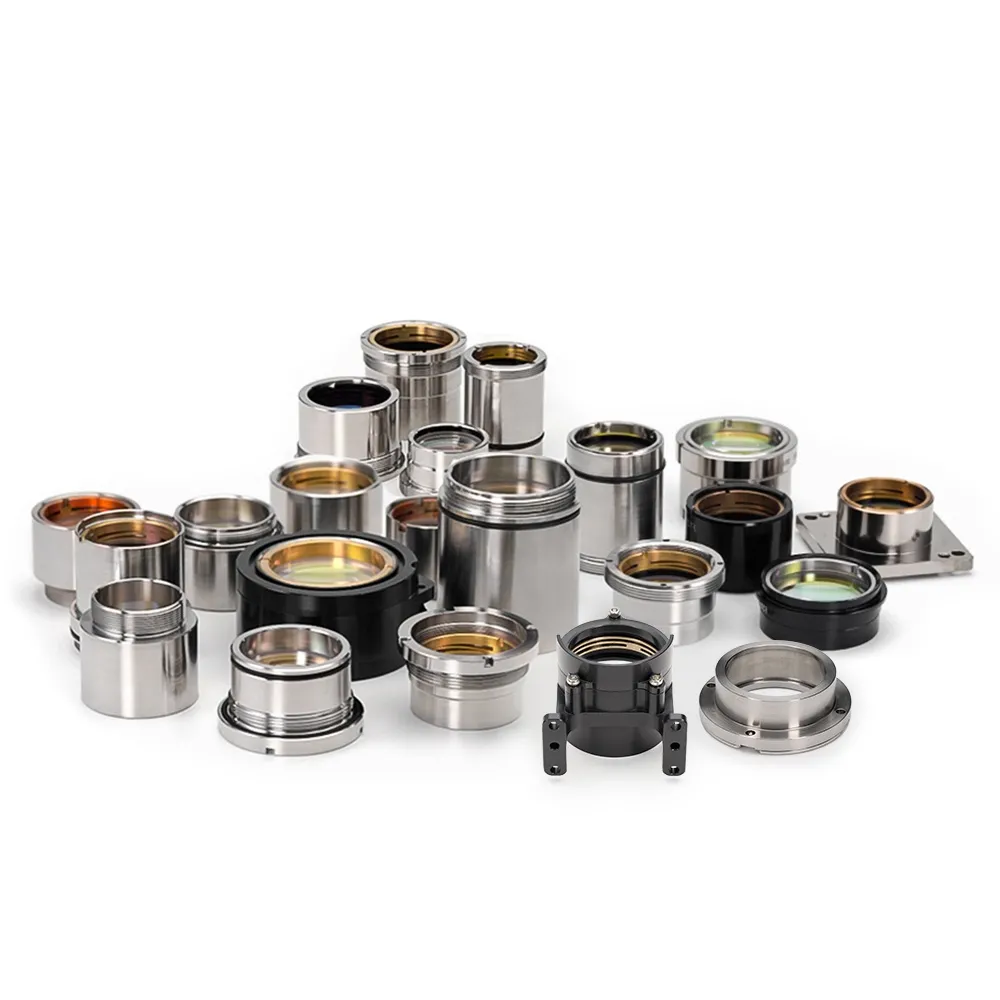

In laser cutting, the collimating and focusing assembly is a critical optical system that shapes and directs the laser beam to achieve precise cuts. The assembly consists of two main components: a collimating lens and a focusing lens. The collimating lens makes the laser beam parallel, while the focusing lens converges the beam to a tiny spot, enabling sharp and accurate cuts.

  • +86 18914018711
  • info@zplasers.com
GET A REQUEST

Description

High-Temperature Resistant Crystals

Stable Performance Under Extreme Conditions, Crafted from high-quality crystals with excellent thermal stability, ideal for high-power laser applications without deformation or cracking.

Enhanced Optical Coating

Low Loss, High Transmittance, Extended Lens Life, Features anti-reflection, anti-oxidation, and anti-corrosion coatings that improve laser transmission efficiency and prolong component lifespan.

Fine Workmanship & Long Service Life

Precision-Crafted for Reliable Durability, Carefully manufactured with tight tolerances to ensure stable operation, excellent performance, and long-term use.

High-Quality Materials & Standard Fit

Durable, Rigid, and Form-Stable, Built with premium materials for enhanced strength, anti-deformation, and accurate compatibility with standard system sizes.

Strong Adaptability

Compatible with Various Laser Systems, Designed to work with a wide range of laser types and applications, from metal cutting to fine engraving.

Easy Installation & Operation

Quick Replacement with Minimal Downtime, User-friendly design enables fast replacement and simple operation, helping reduce maintenance time and improve workflow efficiency.

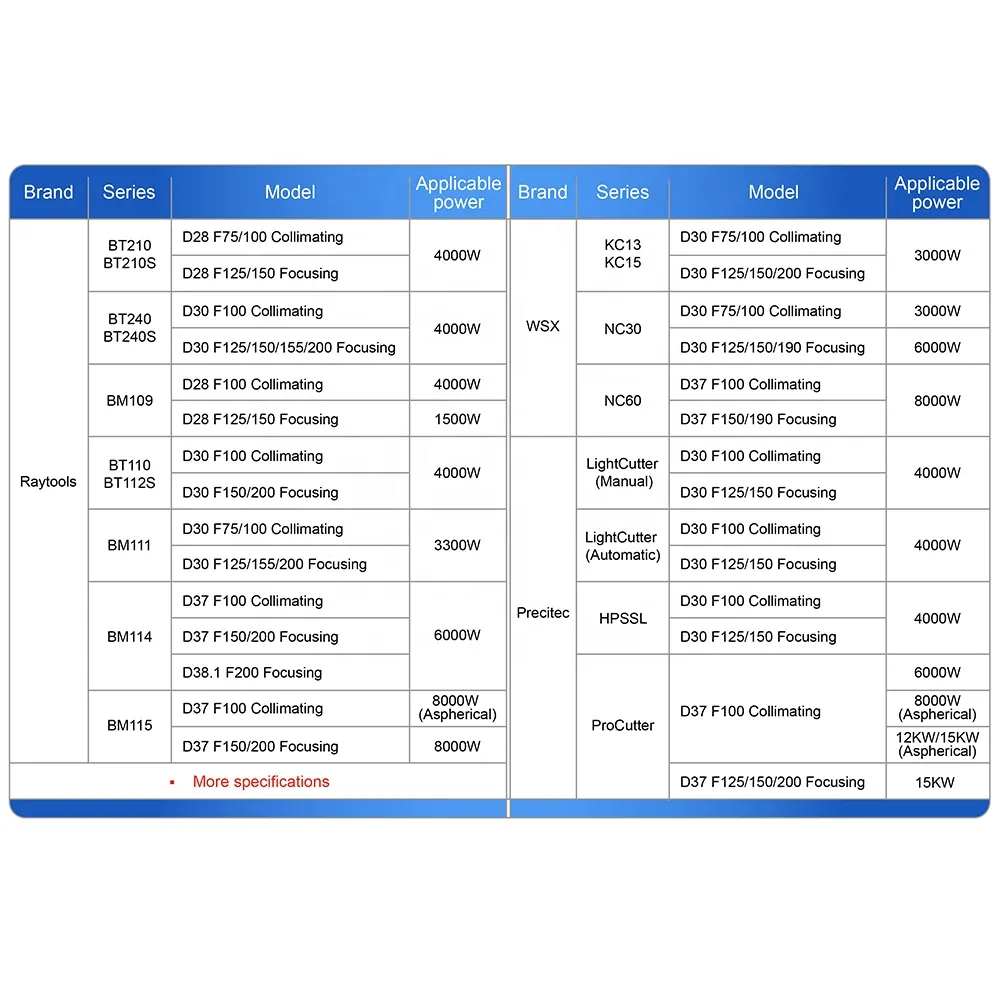

NO Brand Products Used on Cutting Head
1 Raytools BT210 Collimating (D28 CL75) BT210
2 BT210 Collimating (D28 CL100)
3 BT210  Focus (D28 FL125)
4 BT240(S) Collimating (D30 CL100) BT240(S)
5 BT240(S) Focus (D30 FL125)
6 BT240(S) Focus (D30 FL150)
7 BT240(S) Focus (D30 FL155)
8 BT240(S) Focus (D30 FL200)
9 BM109 Collimating (D28 CL100) BM109
10 BM109 Focus (D28 FL125)
11 BM109 Focus (D28 FL150)
12 BM110 Collimating (D30 CL100) old BM110(old)
13 BM110 Focus (D30 FL125) old
14 BM110 Focus (D30 FL150) old
15 BM110 Focus (D30 FL200) old
16 BM112 Collimating (D30 CL100)  BM112
17 BM112 Focus (D30 FL125)
18 BM112 Focus (D30 FL150)
19 BM112 Focus (D30 FL200)
20 BM110 Collimating (D30 CL75) new BM110 (new)
21 BM110 Collimating (D30 CL100) new
22 BM110 Focus (D30 FL125) new
23 BM110 Focus (D30 FL155) new
24 BM110 Focus (D30 FL200) new
25 BM111 Collimating (D30 CL75)  BM111
26 BM111 Collimating (D30 CL100)
27 BM111 Focus (D30 FL125)
28 BM111 Focus (D30 FL155)
29 BM111 Focus (D30 FL200)
30 BM114 Collimating (D37 CL100) BM114
31 BM114 Focus (D37 FL150)
32 BM114 Focus (D37 FL200)
33 BM114S Collimating (D37 CL100) BM114S
34 BM114S Focus (D37 FL150)
35 BM114S Focus (D37 FL200)
36 BM114S Focus (D38.1 FL200)
  BM115 Collimating (D37 CL100)-aspherical BM115
37 BM115 Collimating (D37 CL100)
38 BM115 Focus (D37 FL150)
39 BM115 Focus (D37 FL200)
40 BM06K Collimating (D37 CL100) BM06K
41 BM06K Focus (D37 FL150)
42 BM06K Focus (D37 FL200)
43 BS06K Collimating (D37 CL100) BS06K
44 BS06K Focus (D37 FL150)
45 BS06K Focus (D37 FL200)
46 BS12K Collimating (D37 CL100) BS12K
47 BS12K Focus (D37 FL220)
48 Others
49 Precitec Lightcutter Collimating (D30 CL100) 4kw Lightcutter series
50 Lightcutter Focus (D30 FL125) 4kw
51 Lightcutter Focus (D30 FL150  4kw
52 HPSSL Collimating (D30 CL100) 4kw HPSSL series
53 HPSSL Focus (D30 FL125) 4kw
54 HPSSL Focus (D30 FL150) 4kw
55 HPSSL Focus (D30 FL200) 4kw
56 Procutter 1.0  Collimating (D37 CL100)6kw Procutter 1.0 series
57 Procutter 1.0  Focus (D37 FL125)8kw
58 Procutter 1.0  Focus (D37 FL150)8kw
59 Procutter 1.0  Focus (D37 FL200)8kw
60 Procutter 1.0  Collimating (D37 CL100)15kw
61 Procutter 1.0  Focus (D37 FL125)15kw
62 Procutter 1.0  Focus (D37 FL150)15kw
63 Procutter 1.0  Focus (D37 FL200)15kw
64 Procutter 2.0  Collimating (D37 CL100)20kw Procutter 2.0 series
65 Procutter 2.0  Focus (D37 FL150)20kw
66 Procutter 2.0  Focus (D37 FL200)20kw
67 Procutter 2.0  Collimating (D37 CL100)30kw
68 Procutter 2.0  Focus (D37 FL150)30kw
69 Procutter 2.0  Focus (D37 FL200)30kw
70 Procutter 2.0  Focus (D37 FL250)
71 Procutter 2.0  Focus (D37 FL300)
72 WSX KC13 Collimating (D30 CL75) Manual KC13
73 KC13 Collimating (D30 CL100) Manual
74 KC13 Focus (D30 FL125) Manual
75 KC13 Focus (D30 FL150) Manual
76 KC13 Focus (D30 FL190) Manual
77 KC15 Collimating (D30 CL75) Manual KC15
78 KC15 Collimating (D30 CL100) Manual
79 KC15 Focus (D30 FL125) Manual
80 KC15 Focus (D30 FL150) Manual
81 KC15 Focus (D30 FL190) Manual
82 NC30 Collimating (D30 CL75) Auto NC30
83 NC30 Collimating (D30 CL100) Auto
84 NC30 Focus (D30 FL125) Auto
85 NC30 Focus (D30 FL150) Auto
86 NC30 Focus (D30 FL190) Auto
87 NC60 Collimating (D37 CL100) Auto NC60
88 NC60 Focus (D37 FL150) Auto
89 NC60 Focus (D37 FL190) Auto
90 NC63 Collimating (D37 CL100) Auto NC63
91 NC63 Focus (D37 FL200) Auto
92 NC62 Collimating (D37 CL100)  NC62
93 NC62 Focus (D37 FL150)
94 NC62 Focus (D37 FL190)
95 NC62 Focus (D37 FL200)
96 NC63A  Collimating (D37 CL100)  NC63A
97 NC63A  Focus (D37 FL200)
98 BOCI BLT310 Collimating (D32 CL100) BLT310
99 BLT310 Focus (D32 FL150)
100 BLT310 Focus (D32 FL200)
101 BLT421S Focus (D32 CL100) BLT421S
102 BLT421S Focus (D32 FL150)
103 BLT421S Focus (D32 FL200)
104  Collimating (D37 CL100) BLT4 series head
105 Focus (D37 FL150)
106 Focus (D37 FL200)
